Durable Steel Walkway Grating Anti Corrosive Non Slip Flooring

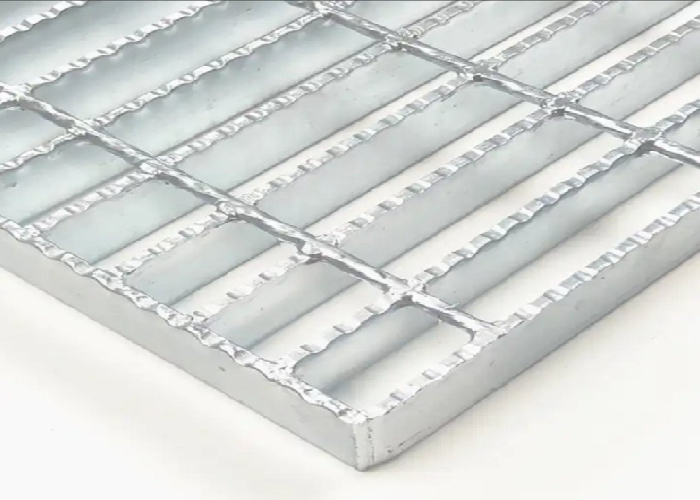

Gambar besar : Durable Steel Walkway Grating Anti Corrosive Non Slip Flooring

Detail produk:

Tempat asal:	CINA
Nama merek:	YUANHAI
Sertifikasi:	ISO9001
Nomor model:	YH-G1

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	50 pcs
Harga:	USD5-26/pc
Kemasan rincian:	1. biasanya dikemas dengan cara menumpuk dengan dua potong kayu persegi di kedua sisi atas dan bawah
Waktu pengiriman:	5-10 hari
Syarat-syarat pembayaran:	T/t, l/c
Menyediakan kemampuan:	5000 pcs per bulan

Kontak

Detil Deskripsi produk

Bahan:	Baja	Jenis Cross Bar:	Terpelintir
Ketebalan bar:	2,5-10mm	Ketebalan batang silang:	6mm, 8mm
Cara las:	Dilas, terkunci tekanan, terkunci	Mencicipi:	Bebas
Ukuran:	disesuaikan	istilah pembayaran:	T/t, l/c
Perawatan permukaan:	Hot-dip galvanis	Ukuran silang:	6mm
Menyoroti:	steel walkway grating anti corrosive , non slip steel flooring , durable walkway grating with warranty

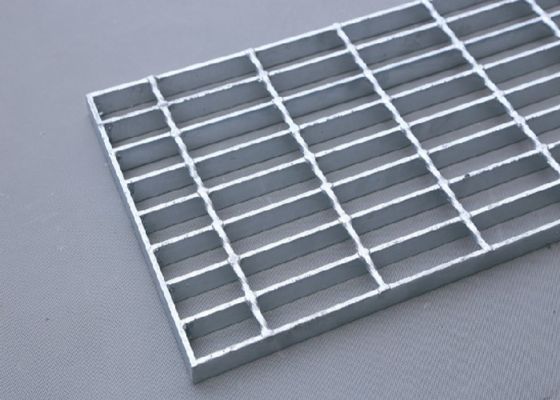

Durable Steel Walkway Grating Anti Corrosive Non Slip Flooring

Heavy Duty Steel Walkway Grating Strong Load Bearing Anti Slip for Industrial Platforms

Product Overview

Durable Steel Walkway Grating is designed to provide safe, cost-effective, and reliable flooring solutions in industrial and commercial projects. It features serrated or plain bearing bars joined with cross bars to form a strong grid structure. The serrated surface offers enhanced slip resistance, while hot-dip galvanizing provides superior corrosion resistance. Its lightweight yet durable design makes it easy to handle and install, making it an excellent choice for safety flooring in factories, wastewater treatment plants, warehouses, and municipal infrastructure.

Compared to concrete or solid steel flooring, steel grating reduces installation time, improves ventilation, and allows natural drainage. These advantages make it a long-term solution for both heavy-duty and light-duty applications.

Specifications

Item	Specification
Material	Mild steel, stainless steel, galvanized steel
Bar Type	Plain flat bar, serrated bar
Bar Size	25 * 3 mm - 50 * 5 mm
Bearing Pitch	30 mm, 40 mm
Cross Bar Pitch	50 mm, 100 mm
Surface Finish	Hot-dip galvanized, painted
Panel Size	1 * 3 m, 1 * 6 m, customizable
Surface Type	Smooth or serrated non-slip

Key Features

Slip-resistant surface ensures worker safety in wet or oily areas.
Corrosion protection from hot-dip galvanizing.
Lightweight but strong: easy to transport and install.
Open design allows water, air, and light to pass freely.
Flexible applications across multiple industries.

Advantages

Improves workplace safety and reduces accident risks.
Long lifespan with minimal maintenance requirements.
Reduces installation labor and overall project costs.
Environmentally friendly: recyclable and sustainable.
Customizable dimensions to meet unique project needs.

Applications

Industrial: walkways, mezzanine floors, safety platforms.
Municipal: drainage covers, trench covers, pedestrian bridges.
Commercial: parking lots, staircases, ventilation grilles.
Utilities: wastewater treatment, chemical plants.
Public projects: parks, subways, and stations.

Manufacturing Process

Select raw steel bars according to specifications.
Assemble and weld bearing bars with cross bars.
Apply galvanizing or protective coatings.
Cut and finish panels to customer sizes.
Inspect for quality, durability, and slip resistance.

Packaging & Delivery

Steel walkway gratings are stacked and strapped securely on wooden or steel pallets. Each shipment can be wrapped with waterproof material to prevent rust during transit. Normal delivery time is 10-15 days.

Q: Is serrated grating better than plain?

A: Serrated bars provide extra slip resistance, especially in outdoor or oily areas.

Q: Can gratings be reused?

A: Yes, they are durable and easy to dismantle for relocation.

Q: Do you offer custom coatings?

A: Yes, we can provide epoxy, painted, or galvanized finishes based on client needs.

Why Choose Us?

With over a decade of expertise in metal mesh solutions, we offer competitive pricing, strict quality control, and tailored support. Our global logistics network ensures punctual delivery, and our technical team stands ready to assist with custom designs, material selection, and installation guidance--guaranteeing your project's success.
